Densimetric Separators
Mizar Densimetric Separators efficiently separate materials based on their density differences. This technology is ideal for separating materials of different densities in recycling processes, offering superior performance, especially in applications where metals and plastics need to be separated.
The DES Series is equipped with precise adjustment mechanisms and high-performance fan systems, optimized down to the finest detail. As a result, low-density materials collect at the back, while high-density materials like copper accumulate at the front, ensuring effective separation. In addition to energy efficiency and low operating costs, the automation systems and user-friendly control panels make the processes easy to manage.
Recyclable Materials
Technical Specification
| DES S1 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 15 kW / 20.1 HP |
| TABLE AREA | 0.85 m² / 9.1 ft² |
| OVERALL LENGTH | 2.280 mm / 89.7" |
| OVERALL WIDTH | 1.090 mm / 42.9" |
| OVERALL HEIGHT | 3.920 mm / 154.3" |
| OVERALL WEIGHT | 900 kg / 1,990 lb |

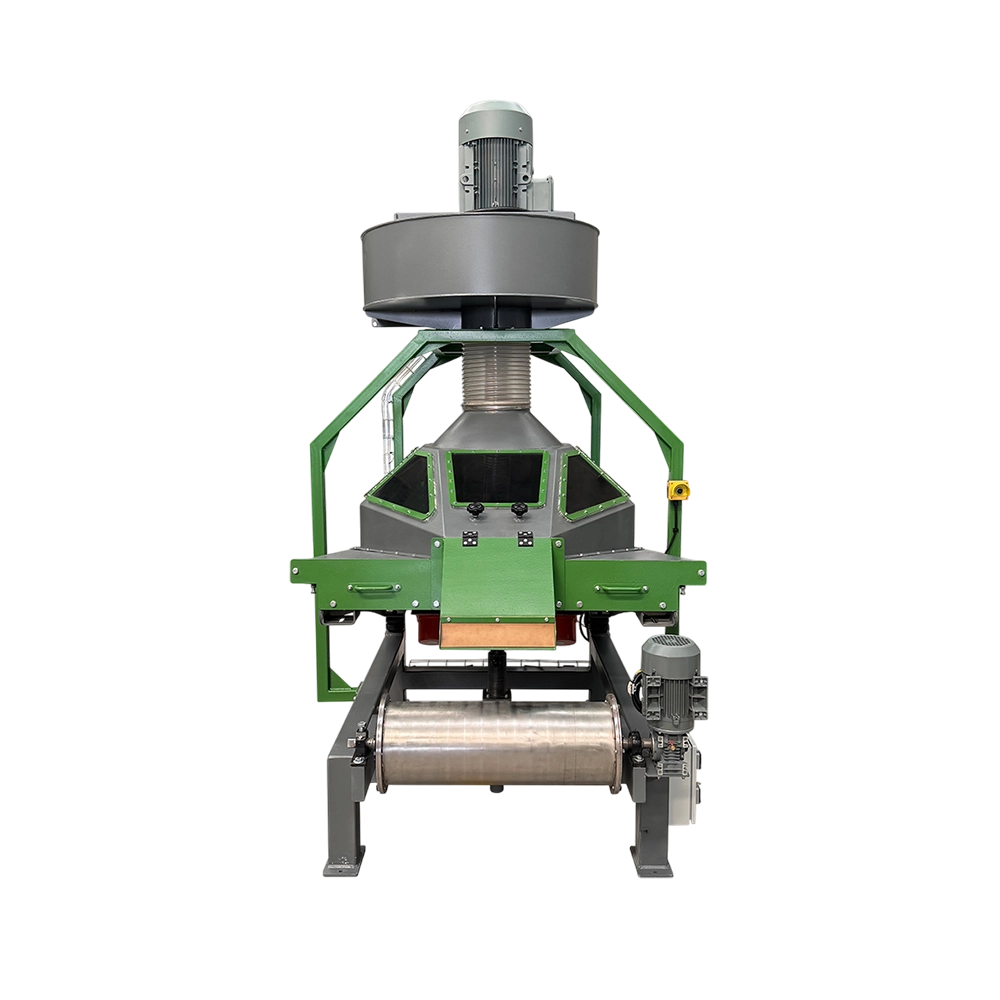

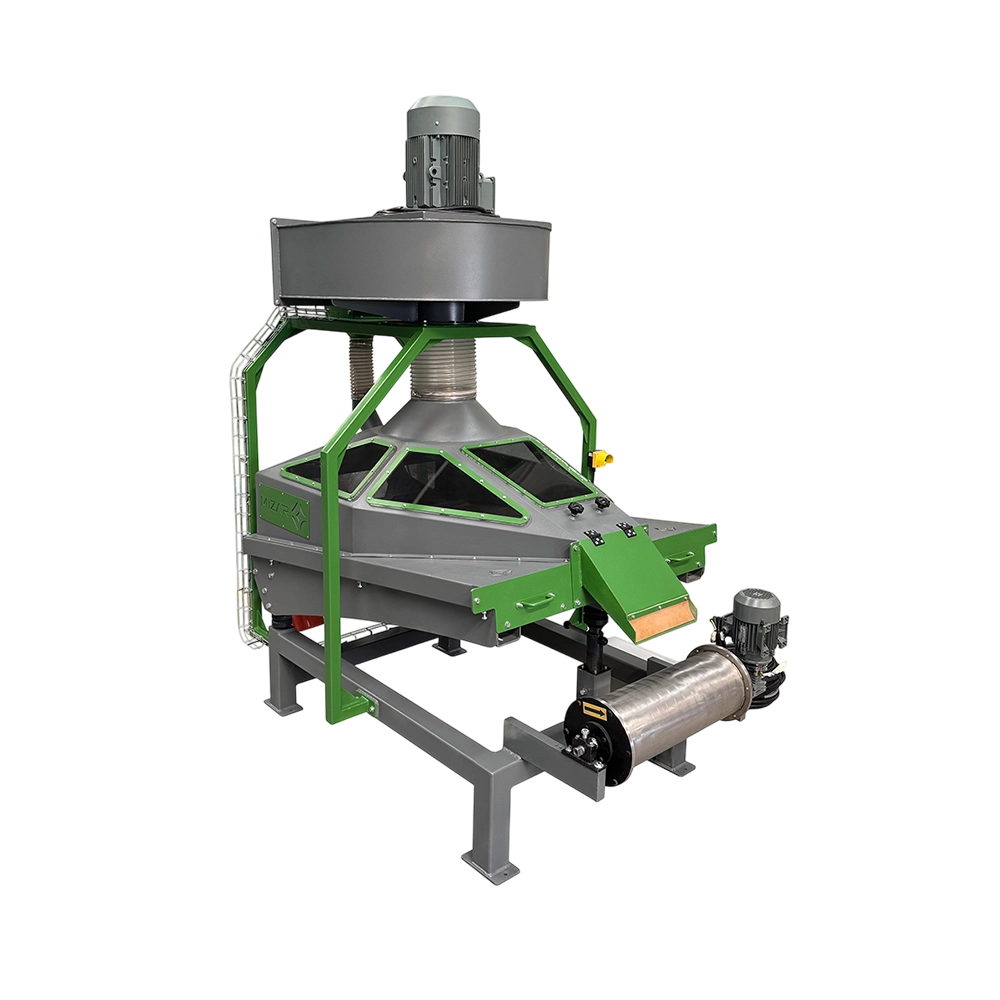

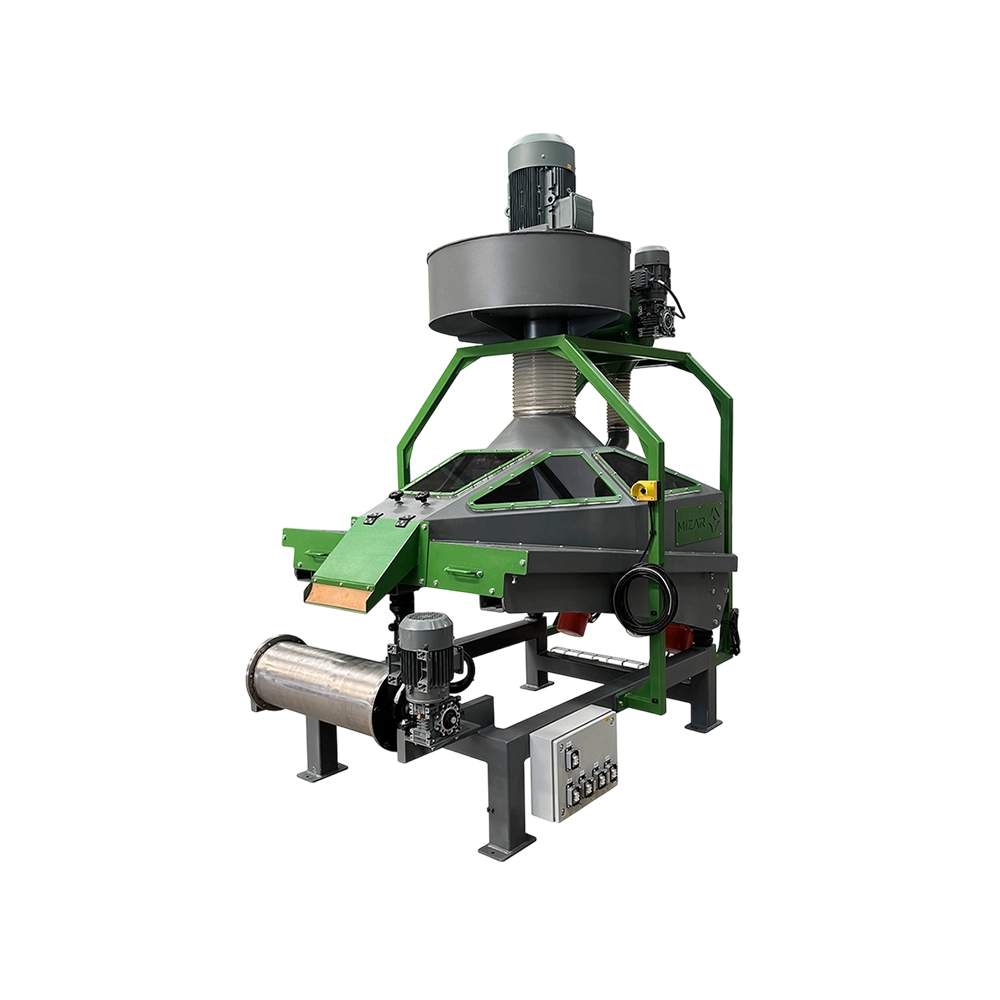

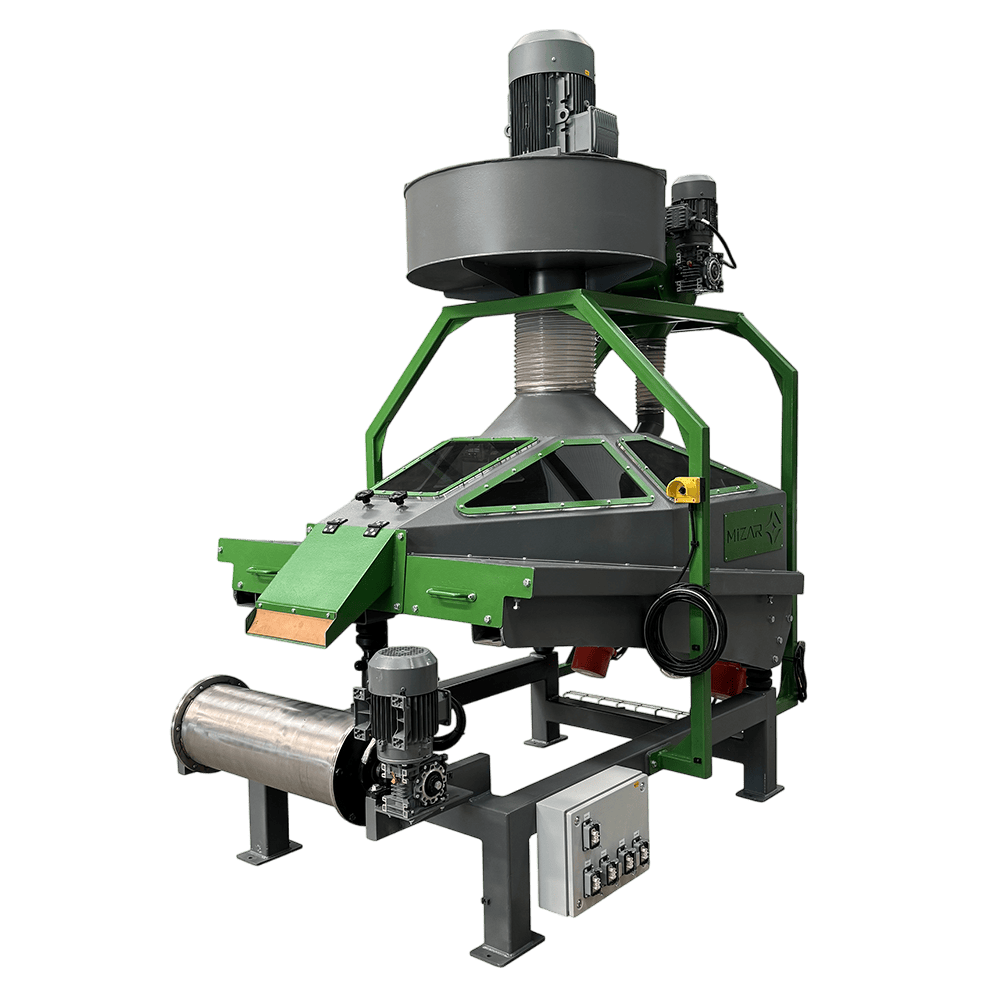

| DES M1 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 20 kW / 26.8 HP |
| TABLE AREA | 1.5 m² / 16.1 ft² |
| OVERALL LENGTH | 2.350 mm / 92.5" |
| OVERALL WIDTH | 1.570 mm / 61.8" |
| OVERALL HEIGHT | 3.970 mm / 156.3" |
| OVERALL WEIGHT | 1.200 kg / 2,650 lb |

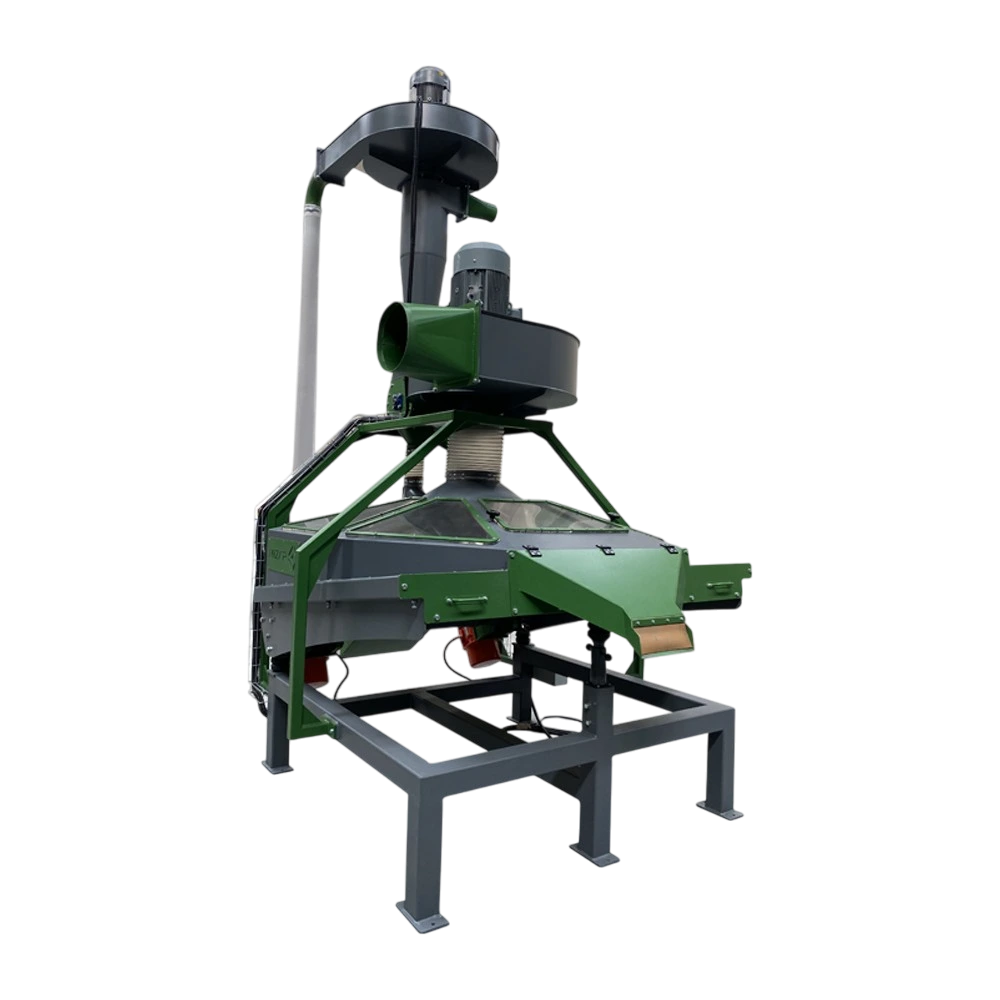

| DES L1 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 27 kW / 36.2 HP |
| TABLE AREA | 3.3 m² / 35.5 ft² |
| OVERALL LENGTH | 2.500 mm / 98.4" |
| OVERALL WIDTH | 1.970 mm / 77.6" |
| OVERALL HEIGHT | 4.020 mm / 158.2" |
| OVERALL WEIGHT | 1.350 kg / 2,982 lb |
