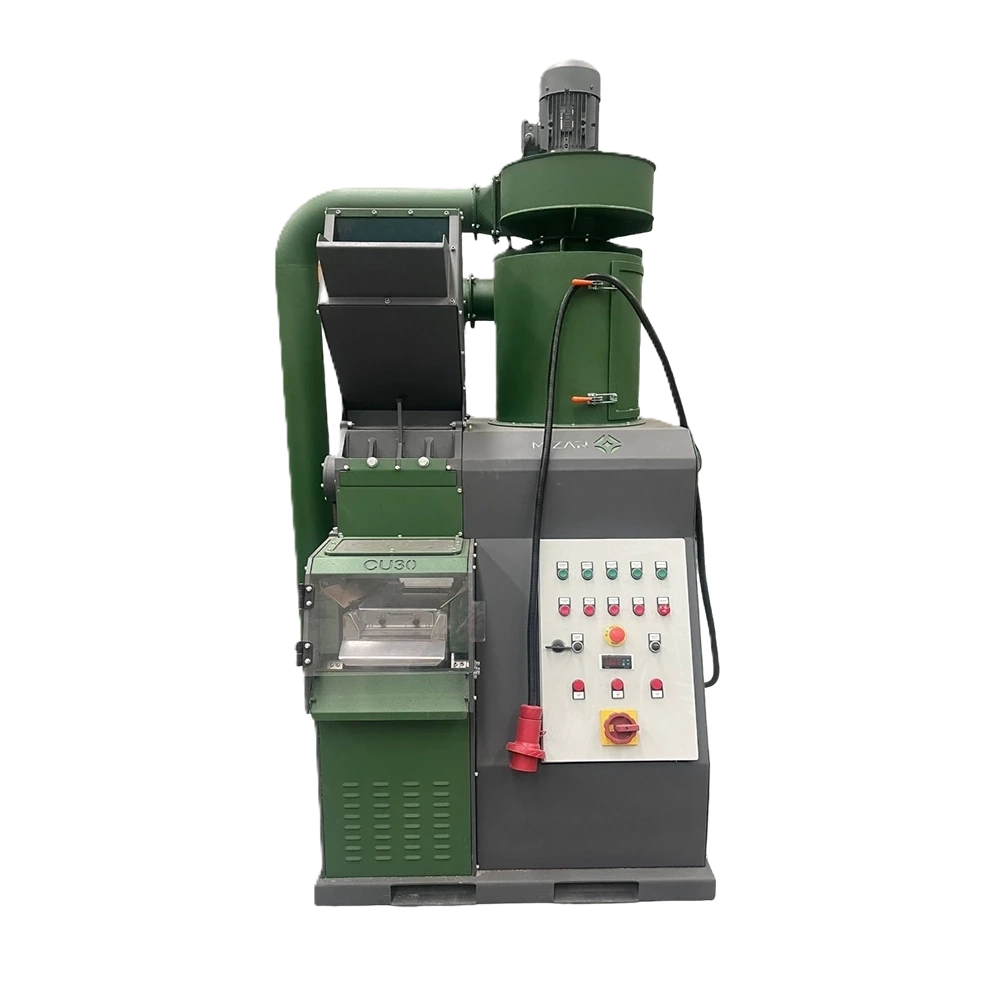

Compact Series
The Compact Series Cable Recycling machines offer high efficiency in the recycling of cables of different diameters and materials. By breaking down cables, they separate the metal and plastic components inside. The CMT models feature an additional Turbo Mill. The turbo mill in the system is specifically designed to completely separate fine copper wires, achieving higher purity in recycling.
Thanks to its compact structure, it can be easily installed in facilities with limited space, prioritizing energy efficiency and reducing operating costs.
Recyclable Materials
Technical Specification
| CMP | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 11 kW / 14.7 HP |
| GRANULATOR MOTOR | 7.5 kW / 10 HP |
| BLADE QUANTITY | 3+2 |
| OVERALL LENGTH | 1.300 mm / 51.1" |
| OVERALL WIDTH | 1.500 mm / 59" |
| OVERALL HEIGHT | 2.140 mm / 84.2" |
| OVERALL WEIGHT | 1.300 kg / 2,870 lb |
| APPROXIMATE CAPACITY | 70-100 kg/h / 150-200 lb/h |
| CMT | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 13 kW / 17.4 HP |
| GRANULATOR MOTOR | 7.5 kW / 10 HP |
| BLADE QUANTITY | 3+2 |
| OVERALL LENGTH | 1.300 mm / 51.1" |
| OVERALL WIDTH | 1.500 mm / 59" |
| OVERALL HEIGHT | 2.140 mm / 84.2" |
| OVERALL WEIGHT | 1.380 kg / 3,040 lb |
| APPROXIMATE CAPACITY | 70-100 kg/h / 150-200 lb/h |
