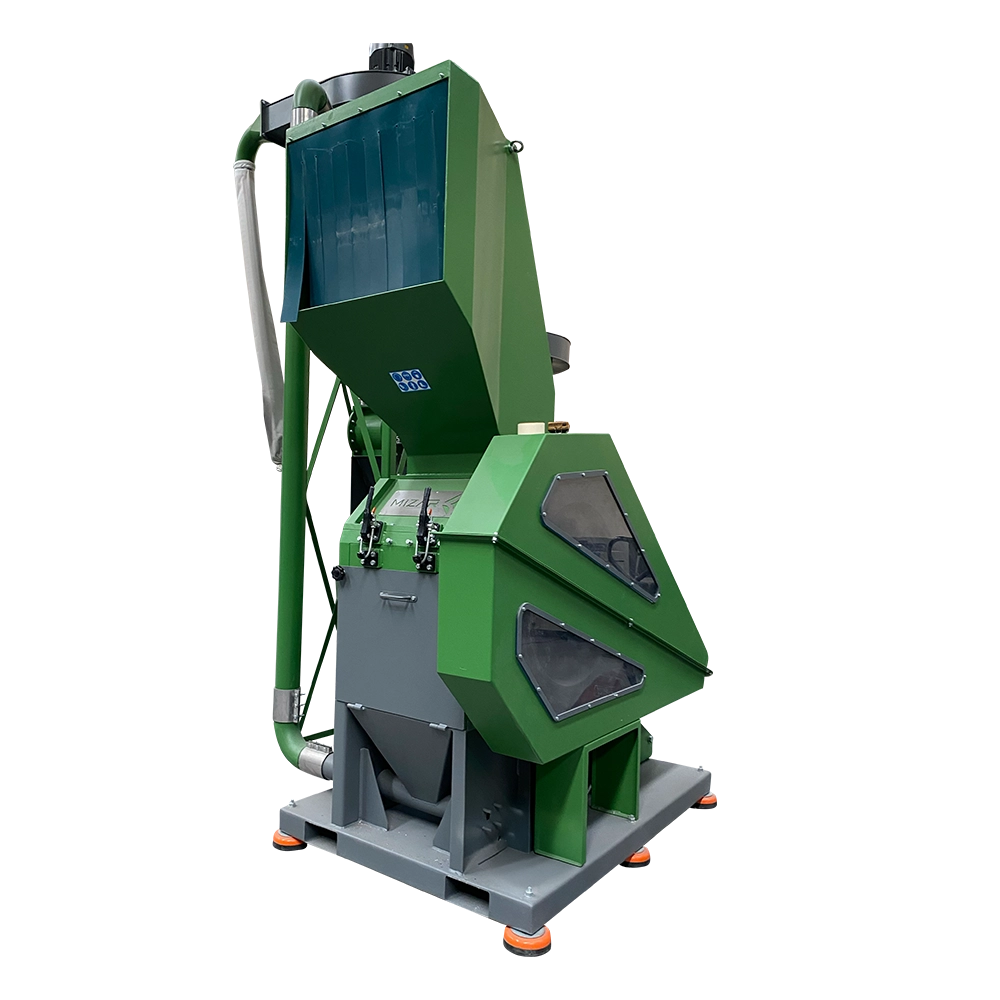

Pre Granulators
Machines used at the initial stage of the recycling process to pre-shred large-volume materials, specifically designed for reducing the size of hard materials such as cables, plastics, and metals. Offering high durability and efficiency, these machines prepare the material for subsequent separation and granulation processes. With energy-saving motors and a user-friendly design, pre-granulators provide continuous and reliable performance in production lines.
Recyclable Materials
Technical Specification
| PGR S1 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 30 kW / 40.2 HP |
| ROTOR DIAMETER | 500 mm / 19.6" |
| ROTOR LENGTH | 380 mm / 15.7" |
| BLADE QUANTITY | 7+3 |
| OVERALL LENGHT | 1.050 mm / 41.3" |
| OVERALL WIDTH | 1.620 mm / 63.7" |
| OVERALL HEIGHT | 2.200 mm / 86.6" |
| OVERALL WEIGHT | 2.000 kg / 4,410 lb |
| PGR M1 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 55 kW / 73.7 HP |
| ROTOR DIAMETER | 500 mm / 19.6" |
| ROTOR LENGTH | 510 mm / 20" |
| BLADE QUANTITY | 14+6 |
| OVERALL LENGHT | 1.260 mm / 49.6" |
| OVERALL WIDTH | 1.970 mm / 77.6" |
| OVERALL HEIGHT | 2.550 mm / 100.3" |
| OVERALL WEIGHT | 3.200 kg / 7,060 lb |
| PGR L1 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 75 kW / 100.5 HP |
| ROTOR DIAMETER | 500 mm / 19.6" |
| ROTOR LENGTH | 1.020 mm / 40.1" |
| BLADE QUANTITY | 21+9 |
| OVERALL LENGHT | 1.800 mm / 70.8" |
| OVERALL WIDTH | 2.000 mm / 78.7" |
| OVERALL HEIGHT | 2.550 mm / 100.3" |
| OVERALL WEIGHT | 4.300 kg / 9,470 lb |
