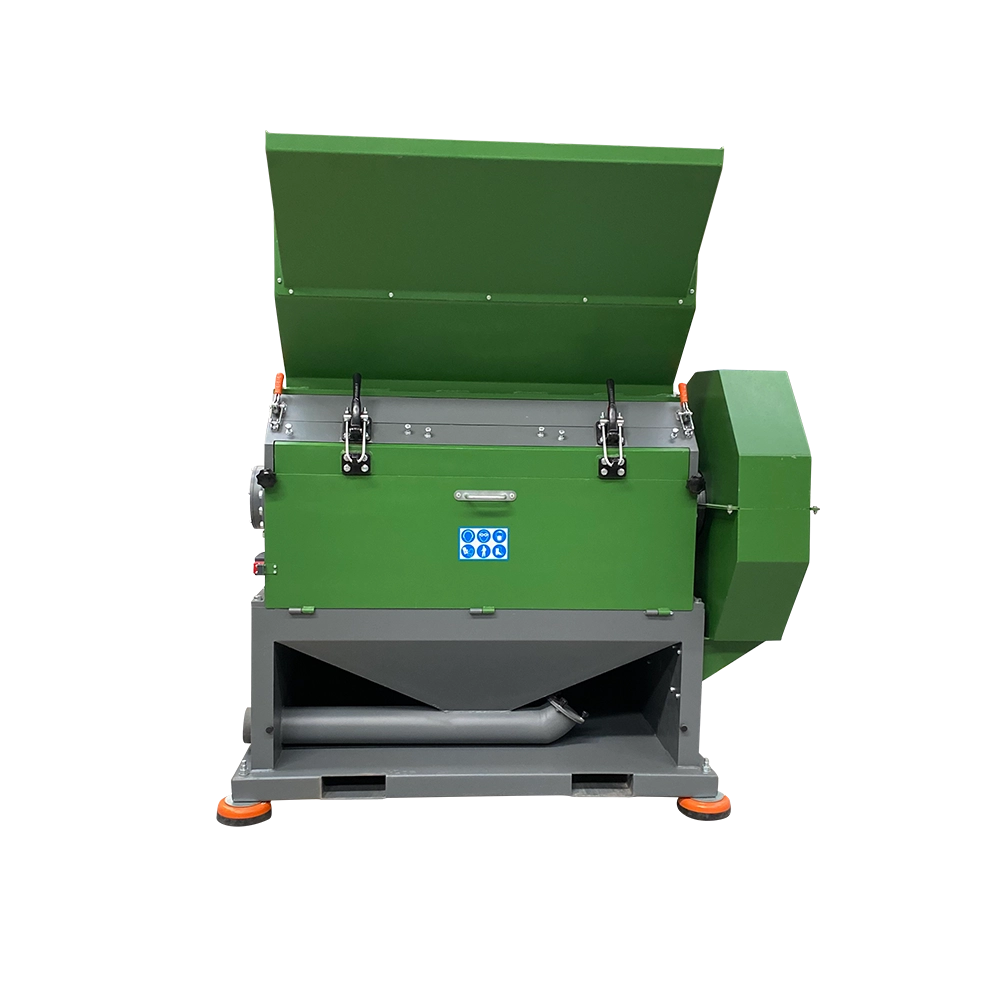

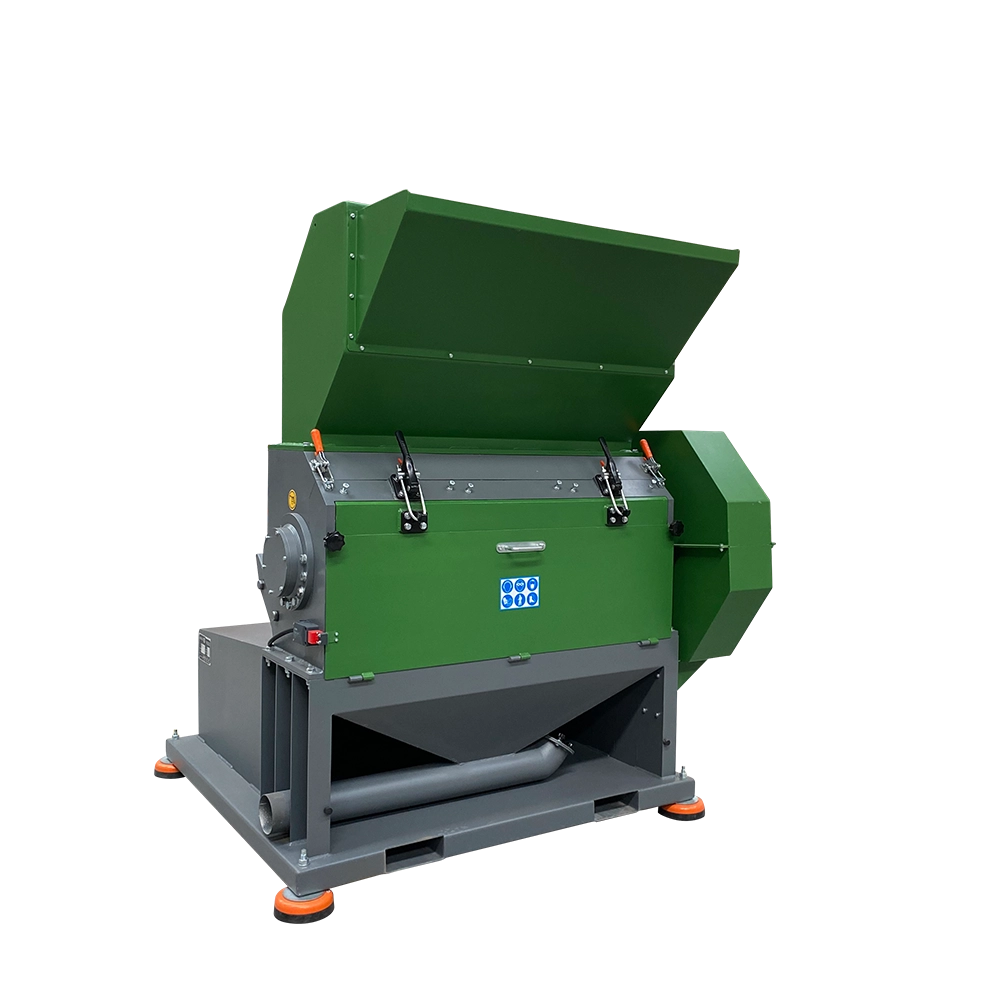

Fine Granulators
Mizar Machine's granulators provide high performance in industrial waste processing and recycling processes. These granulators are designed to efficiently grind and granulate various materials. With superior crushing capacity and fast processing times, they can effectively handle challenging materials such as metal cables, plastics, and electronic waste. The use of durable materials and wear-resistant blades ensures long-lasting and reliable performance. Prioritizing energy efficiency, they deliver high processing efficiency with low energy consumption, reducing energy costs.
The PLC-controlled automation systems ensure precise and easy management of the machine, with user-friendly interfaces and advanced control systems that allow continuous performance monitoring. Safety is a priority, with emergency stop systems and safety applications ensuring a secure working environment.
Mizar Machine's granulators offer a wide range of applications, from recycling lines to scrap waste management, making them an excellent solution for your industrial recycling needs.
Recyclable Materials
Technical Specification
| FGR S1 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 15 kW / 20.1 HP |
| ROTOR DIAMETER | 350 mm / 13.7" |
| ROTOR LENGTH | 400 mm / 15.7" |
| BLADE QUANTITY | 7+2 |
| OVERALL LENGHT | 800 mm / 31.5" |
| OVERALL WIDTH | 1.400 mm / 55.1" |
| OVERALL HEIGHT | 2.000 mm / 78.7" |
| OVERALL WEIGHT | 1.400 kg / 3,090 lb |
| FGR M1 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 30 kW / 40.2 HP |
| ROTOR DIAMETER | 350 mm / 13.7" |
| ROTOR LENGTH | 800 mm / 31.5" |
| BLADE QUANTITY | 14+4 |
| OVERALL LENGHT | 1.200 mm / 47.2" |
| OVERALL WIDTH | 1.480 mm / 58.2" |
| OVERALL HEIGHT | 2.000 mm / 78.7" |
| OVERALL WEIGHT | 2.200 kg / 4,850 lb |
| FGR L1 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 45 kW / 60.3 HP |
| ROTOR DIAMETER | 350 mm / 13.7" |
| ROTOR LENGTH | 1.200 mm / 47.2" |
| BLADE QUANTITY | 21+6 |
| OVERALL LENGHT | 1.600 mm / 63.2" |
| OVERALL WIDTH | 1.580 mm / 62.2" |
| OVERALL HEIGHT | 2.000 mm / 78.7" |
| OVERALL WEIGHT | 2.800 kg / 6,170 lb |
