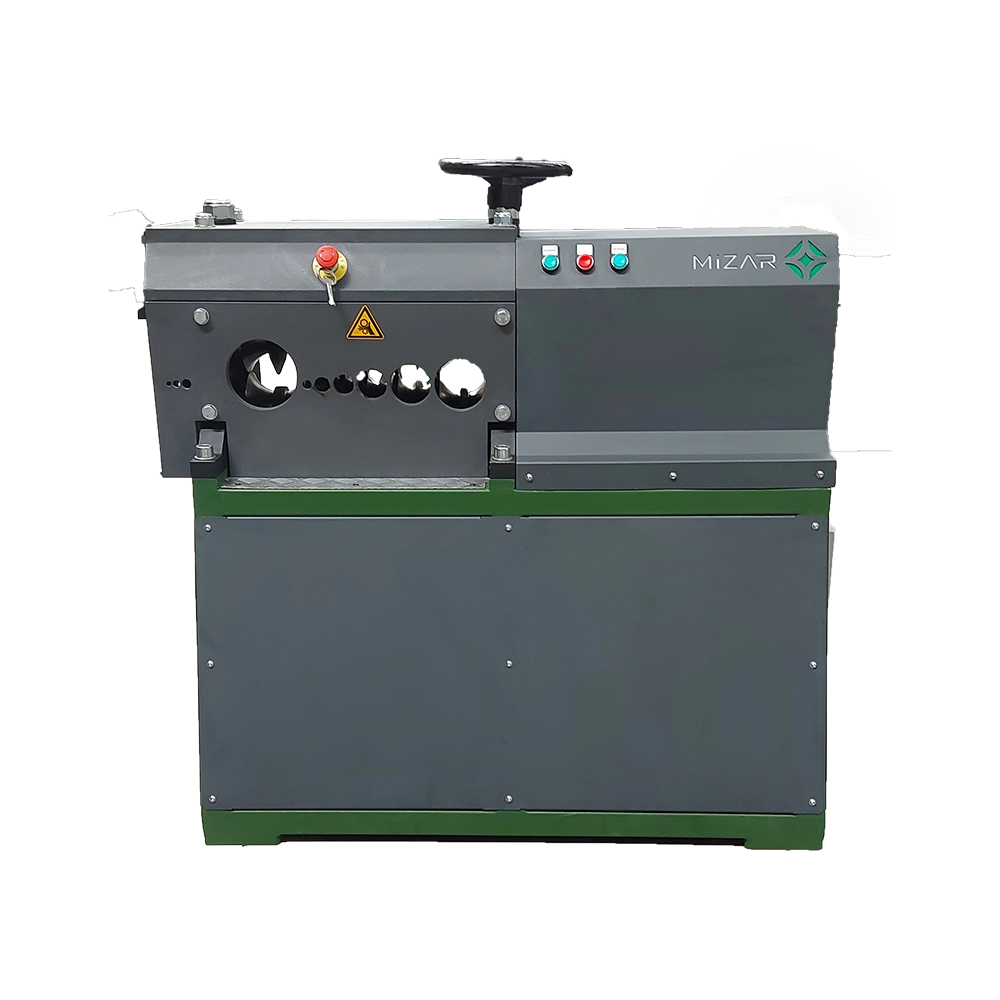

Cable Stripping Machine
The CBR A3 Cable Stripping Machine is specially designed to strip the outer insulation material from cables of all sizes, making it easy to remove the conductive material inside. This series offers superior performance on steel-armored cables (SWA), double steel-armored cables, steel tapes, PVC-coated cables, lead-coated cables, thick rubber-coated cables, nylon-coated cables, low-grade cables, TT cables, and more. Specially processed blades with unique designs allow cables of any length to be cut and stripped for a long time without dulling the blades. All electrical and electronic components in the CBR A3 Series are Siemens brand. Our products are manufactured and certified in accordance with CE and EAC standards.
Recyclable Materials
Technical Specification
| CBR A3 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 5.5 kW / 7.3 HP |
| CABLE DIMENSIONS | 1-120 mm / 0.0"-4.7" |
| CUTTING SPEED | 25 m/min / 82.0 ft/min |
| OVERALL LENGTH | 1.240 mm / 48.8" |
| OVERALL WIDTH | 780 mm / 30.7" |
| OVERALL HEIGHT | 1.330 mm / 52.3" |
| OVERALL WEIGHT | 480 kg / 1,060 lb |

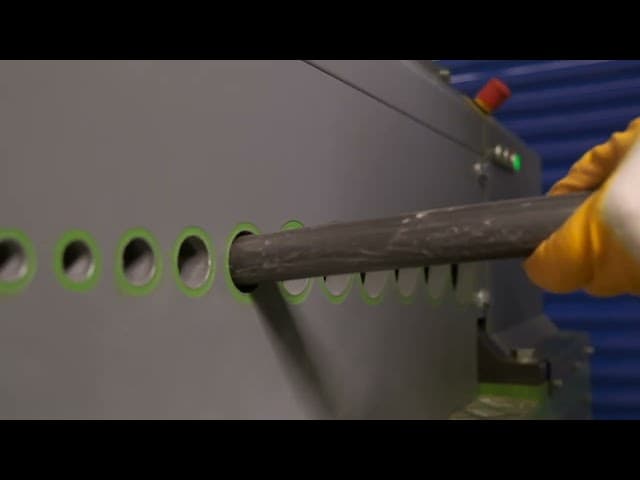

Product Video
